This article has also been superceded by an updated V2 version which be found here.
I have finished the new version of the SharePoint 2007 colour calendar. Here are some of the features:-
- Built as a SharePoint solution.
- New web part to do the colour coding, no messing with Javascript.
- New type of list to define the colour mappings so you can have one central place to hold colour mappings.
- Works with WSS or MOSS.
- Foreground and background colouring.
There is a new type of list called Colour Calendar and another type of list called Colour Calendar Mapping. An instance of the mapping list is created by default in the root of the site collection with colour mappings for the default event categories.

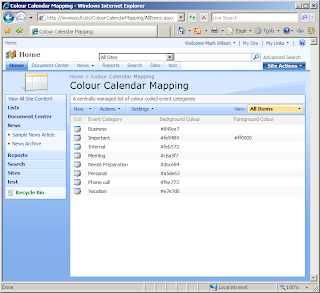

This mapping list defines the foreground and background colours of each event category.
The colour calendar list is based on the in built calendar list but has two fields added, the event category plus a calculated field needed to make the colouring work.
Having created a colour calendar you need to edit the calendar.aspx page view and add a "PlanetWilson Calendar Colour Coder" web part (snappy title eh?). This should be placed below the calendar view list view webpart.
You should now have a colour coded calendar.
By default the web part gets its colour mappings from the central mapping list deployed at the site collection root. It does however specify a property to point it at a different mapping list should you want some different categories and colours for a calendar. Just create a mapping list somewhere else and set the property to the list, it can be fully qualified URL or relative, don't put the view part on the end of this URL e..g
http://mwmoss/test/mappinglist2
or
./mappinglist2
The categories are held in a site column call Event category, you can change this to add new categories or change existing ones. Be aware though that if you choose the option to push changes down to all the lists you may overwrite any custom categories you made on an individual calendar.
Anyway I hope it is an improvement on the previous version. The source code and WSP file can be found here:-
http://www.codeplex.com/planetwilson
Are you having problems getting it to work?
1) Did you create an instance of the Colour Calendar and NOT the standard calendar list?
2) Did you edit the calendar.aspx page or the page where you have placed a web part for this newly created list and added a "PlanetWilson Calendar Colour Coder" web part? Is it definitely placed AFTER the calendar list view web part?
Thanks to my good buddy Chris (http://chrissyblanco.blogspot.com) for pointing out when I was being stupid banging my head against a brick wall with calculated fields (turns out you definitely need theResultType attribute - doh!)
Sunday, 18 November 2007
